pCAG-GBP7-p65AD Plasmid

pCAG-GBP7-p65AD is used along with pCAG-Gal4DBD-GBP2 to activate UAS-regulated genes in cells expressing GFP. The vector allows the exchange of activation domain (AD) or other proteins fused to the C-terminal end of GBP7 in the vector.

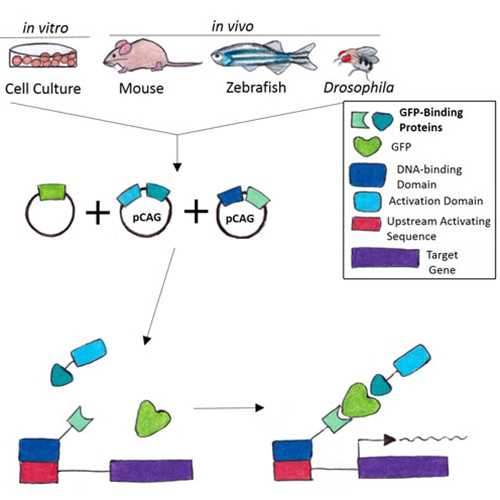

Green fluorescent protein (GFP) and its derivatives are commonly used markers of gene expression across model organisms. Notably, in the mouse, thousands of transgenic GFP lines have been generated; these reagents revealed the expression pattern of many genes and serve as reagents for labeling specific cell types. To extend the utility of transgenic GFP lines such that one can use GFP to directly manipulate any desired gene in the GFP-labeled cell types, we developed a synthetic system that uses GFP as a scaffold protein for inducing formation of a hybrid transcription factor. Recognition of GFP is mediated by GFP binding proteins (GBPs), which are single-chain GFP-binding domains derived from Camelid antibodies. Specific pairs of GBPs are capable of bringing together tethered DNA binding domain (DBD) and activation domain (AD) onto the GFP scaffold. Such a complex can then trigger induction of any gene regulated by an upstream activating sequence (UAS).

From the laboratory of Connie L. Cepko, PhD, Harvard University.

The Investigator's Annexe Part of The Investigator's Annexe program.

Catalog Number Product DataSheet Size AVAILABILITY Price Qty
pCAG-GBP7-p65AD Plasmid
Spotted on filter paper 1-2 weeks
Regular Price:$80.00
On Sale:

Product Type: Plasmid
Gene/insert name: GBP7-p65 transactivation domain (AD) fusion protein
Antibiotic Resistance: Ampicillin
Format: Liquid
Tested Applications: Expression of a GFP-dependent transcription factor component in mammalian cells. For protocols, please see: Tang JC, et al. Cell. 2013 Aug 15;154(4):928-39.
Grow in E. coli at 37 C: Yes
Cloning Site 5': AgeI
Cloning Site 3': NotI
Insert Size: 1017 bp
Vector Backbone and Size: pCAG-GFP, 4823
High or low copy: High
Promoter: CAG
Storage: Lyophilized DNA is stable at room temperature indefinitely, reconstituted DNA to be stored in 4 degrees short-term, -20 degrees long term.
Shipped: Ambient temperature



pCAG-GBP7-p65AD is a mammalian expression vector designed to express the activation domain (AD) portion of a GFP-dependent transcription factor. Specifically, the p65 AD is linked to the C-terminal end of GBP7. A nuclear localization signal from the SV40 large-T antigen is added on the N-terminal end of the fusion protein. Transcription of the fusion protein is driven by the early CMV enhancer/beta-actin promoter and terminated by a rabbit beta-globin polyadenylation signal. A Kozak consensus sequence (GCCACC) is placed directly in front of the start ATG for enhancing translation efficiency. An ampicillin resistance gene in the plasmid allows for selection in E.coli. The SV40 ori sequence enables episomal replication of the plasmid in cells expressing the SV40 large-T antigen (e.g., 293T and COS-7 cells).

From the laboratory of Connie L. Cepko, PhD, Harvard University.
  1. Tang JC, Szikra T, Kozorovitskiy Y, Teixiera M, Sabatini BL, Roska B, Cepko CL. A nanobody-based system using fluorescent proteins as scaffolds for cell-specific gene manipulation. Cell. 2013 Aug 15;154(4):928-39.

If you publish research with this product, please let us know so we can cite your paper.
